Anywhere
Weekend Warrior

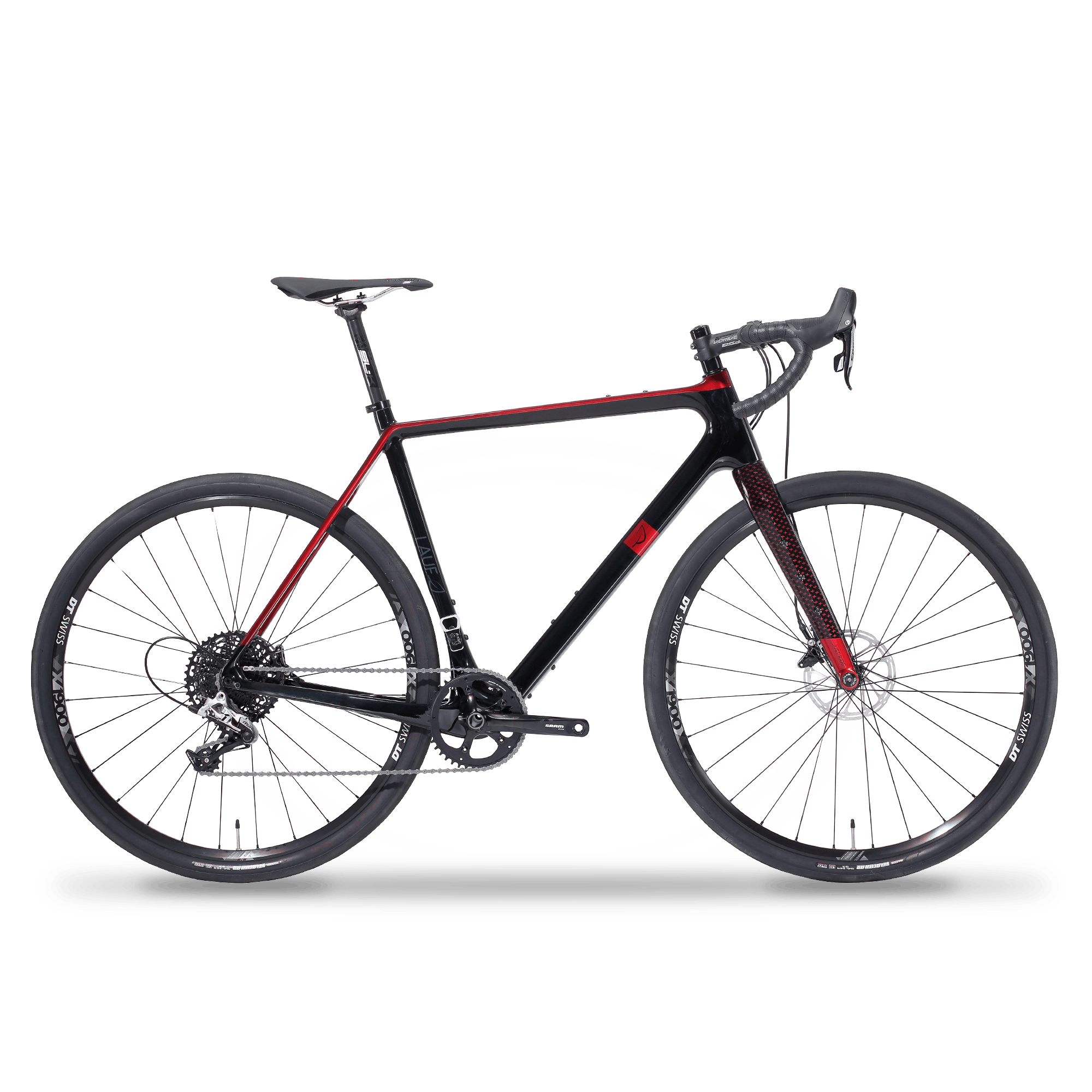

Lauf IRM* Carbon Frame / JAF Carbon Rigid Fork / Smoothie Handlebar / 1x11 Rival mechanical shifting / Without power meter / e*thirteen XCX WheelsView Specs
Anywhere
Anywhere
Weekend Warrior AXS
Lauf IRM* Carbon Frame / JAF Carbon Rigid Fork / Smoothie Handlebar / 1x12 Wireless Rival-GX AXS / Single-sided Rival Power Meter / e*thirteen XCX WheelsView Specs
Anywhere
Race AXS
Lauf IRM* Carbon Frame / JAF Carbon Rigid Fork / Smoothie Handlebar / Wireless Force-X01 AXS / Dual-sided Quarq Power Meter / e*thirteen XCXR Carbon WheelsView Specs
Anywhere
Ultimate
Lauf IRM* Carbon Frame / JAF Carbon Rigid Fork / Smoothie Handlebar / Wireless Red-XX1 AXS / Dual-sided Quarq Power Meter / e*thirteen XCXR Carbon WheelsView Specs
xs
156-164 cm
s
165-173 cm
m
174-181 cm
l
182-189 cm
xl
190-199 cm
156 cm
165 cm
174 cm
182 cm
190 cm
199 cm
Anywhere Weekend Warrior | Anywhere Weekend Warrior AXS | Anywhere Race AXS | Anywhere Ultimate | |
|---|---|---|---|---|
| Frame | Lauf IRM* carbon frame, 12x142mm thru-axle | Lauf IRM* carbon frame, 12x142mm thru-axle | Lauf IRM* carbon frame, 12x142mm thru-axle | Lauf IRM* carbon frame, 12x142mm thru-axle |
| Fork | Lauf JAF Carbon, 15x100mm thru-axle | Lauf JAF Carbon, 15x100mm thru-axle | Lauf JAF Carbon, 15x100mm thru-axle | Lauf JAF Carbon, 15x100mm thru-axle |
| Handlebar | Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44) | Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44) | Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44) | Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44) |
| Rear Derailleur | SRAM Rival 1 Long Cage | SRAM Eagle GX AXS, wireless shifting | SRAM Eagle X01 AXS, wireless shifting | SRAM Eagle XX1 AXS, wireless shifting |
| Front Derailleur | Lauf Bottle Opener | Lauf Bottle Opener | Lauf Bottle Opener | Lauf Bottle Opener |
| Shifters | SRAM Rival 1 | SRAM Rival AXS, wireless shifting | SRAM Force AXS, wireless shifting | SRAM Red AXS, wireless shifting |
| Brakes | SRAM Rival 1 Flat mount Hydraulic (160mm rotor front/left and rear/right) | SRAM Rival Flat mount Hydraulic (160mm rotor front/left and rear/right) | SRAM Force Flat mount Hydraulic (160mm rotor front/left and rear/right) | SRAM Red Flat mount Hydraulic (160mm rotor front/left and rear/right) |
| Crank | SRAM S350 42t | SRAM Rival 1 Wide DUB 42t | SRAM Force 1 DUB 42t | SRAM Red 1 DUB 42t |
| Power meter | N/A | Single-side, SRAM Rival AXS power meter spindle | Dual-side SRAM AXS power meter spider | Dual-side SRAM AXS power meter spider |
| Saddle | Ritchey Streem Comp | Ritchey Streem Comp | Ritchey Streem WCS, Titanium Rails | Ritchey Trail WCS, Titanium Rails |
| Seatpost | FSA V-Drive 27.2mm | FSA V-Drive 27.2mm | FSA SL-K 27.2mm, Carbon | FSA SL-K 27.2mm, Carbon |
| Wheels | e*thirteen XCX Aluminum (6-bolt, Shimano-style freehub, tubeless ready) | e*thirteen XCX Aluminum (6-bolt, Shimano-style freehub, tubeless ready) | e*thirteen XCX Race Carbon (6-bolt, xDR freehub, tubeless ready) | e*thirteen XCX Race Carbon (6 bolt, xDR freehub, tubeless ready) |
| Tires | Maxxis Velocita AR EXO/TR 40c (120tpi) | Maxxis Velocita AR EXO/TR 40c (120tpi) | Maxxis Velocita AR EXO/TR 40c (120tpi) | Maxxis Velocita AR EXO/TR 40c (120tpi) |
| Stem | FSA V-Drive, 6° | FSA V-Drive, 6° | FSA V-Drive, 6° | FSA V-Drive, 6° |
| Headset | FSA Orbit, IS 42/52 (45°lower) | FSA Orbit, IS 42/52 (45°lower) | FSA Orbit, IS 42/52 (45°lower) | FSA Orbit, IS 42/52 (45°lower) |
| Bartape | Lauf Lush | Lauf Lush | Lauf Lush | Lauf Lush |
| Cassette | SRAM 1130, 11-42t | SRAM Eagle 1230 11-50t | SRAM 1275, 10-50t | SRAM Eagle XX1 10-50 |
| Chain | SRAM 1130 | SRAM Eagle NX 12sp | SRAM Eagle NX 12sp | SRAM Eagle XX1 12sp |
| Bottom Bracket | SRAM GXP XR 68mm | SRAM DUB BSA Road 68mm | SRAM DUB BSA Road 68mm | SRAM DUB BSA Road 68mm |
| Weight | ~8.6 kg / 18.9 lbs (avg. for size medium) | ~8.8 kg / 19.4 lbs (avg. for size medium) | ~7.9 kg / 17.4 lbs (avg. for size medium) | ~7.7 kg / 17.0 lbs (avg. for size medium) |
*IRM stands for Lauf’s Impact Resistant Modulus carbon fiber layup. We like to achieve our low frame weights through careful shape and layup designs combined with good manufacturing methods, rather than using more brittle high-modulus or intermediate-modulus carbon fibers. We believe a carbon gravel bike frame should not just be light, it should also be strong. Lauf frames represent our preferred combination of the two. *Specs may change without notice. Components may be exchanged with same level or higher level components.
Copious amount of microscopic comfort.
The Anywhere is made of carbon and, of course, designed in-house at Lauf. On top of that, it's the chief of mixed-terrain. Whether it's hammering the pavement with a dash of gravel or heading into the wild loaded with bags - just going anywhere. The Anywhere eats vibrations from the road and smoothies the hits on the gravel - all thanks to the Lauf Smoothie handlebar we developed for the bike – just ride!
Geometry
All measurements are shown in mm,
except where stated.
| X-Small | Small | Medium | Large | X-large | |
|---|---|---|---|---|---|
| Rider Height | 156-164cm 5'1.4"-5'4.6" | 165-173cm 5'5"-5'8.1" | 174-181cm 5'8.5"-5'11.3" | 182-189cm 5'11.7"-6'2.4" | 190-199cm 6'2.8"-6'6.3" |
| Stem | 60, 7° | 70, 7° | 80, 7° | 90, 7° | 100, 7° |
| Reach to handlebar | 425 | 439 | 461 | 482 | 503 |
| Stack to handlebar | 556-698 | 573-617 | 602-648 | 633-682 | 665-716 |
| BB to saddle top | 560-698 | 600-778 | 622-820 | 645-863 | 675-893 |
| Frame reach | 382 | 387 | 399 | 409 | 421 |
| Frame stack | 517 | 531 | 558 | 587 | 617 |
| Head angle | 71° | 71° | 71° | 71° | 71° |
| Seattube angle | 73° | 73° | 73° | 73° | 73° |
| Seattube length | 480 | 520 | 542 | 565 | 595 |
| Chainstay length | 425 | 425 | 425 | 425 | 425 |
| BB drop | 68 | 68 | 68 | 68 | 68 |
| Head tube length | 92 | 105 | 133 | 164 | 194 |
| Top tube length | 541 | 550 | 569 | 588 | 610 |
| Wheelbase | 1004 | 1014 | 1034 | 1056 | 1077 |
| Front-Center | 589 | 598 | 619 | 640 | 661 |
| Axle to crown | 400 | 400 | 400 | 400 | 400 |
| Fork rake | 45 | 45 | 45 | 45 | 45 |
| Standover height | 729 | 761 | 784 | 807 | 838 |
Notes:
- (Q) Standover height is measured straight above the bottom bracket on 40mm Maxxis Velocita AR tires.
- A fast but comfortable fit.
The Lauf Fit of the Anywhere is optimized for “weekend warriors” and racers. It’s made for the optimum balance of aerodynamics and long-distance comfort. The short headtube enables an aerodynamic bike fit, while the generous headset spacers (35mm) give superb tuneability. - Your correct size is easy to find.
The Anywhere bikes have a wide setup window for the “Stack to Handlebar” (the most defining dimension for how “aggressive” a bike fit is). All Anywhere bikes come with 35mm of headset spacers and a stem that can be flipped up/down for extra tuneability. Hence, there is a generous overlap between bike sizes so a rider that chooses a bike for his size according to the chart above should easily find his optimal setup. - Zero-setback seatposts.
Lauf True Grit bikes have a slack seat tube angle (72.5°) and are thus set up to be used with zero-setback seatposts.
Features
The Anywhere is (bike-) packed with great features designed for a menu of mixed terrain. Jump out the door, grind your way through or load it up and head anywhere you want. In case you forgot - we made sure it has a bottle opener.
Lauf Smoothie
The Lauf Smoothie handlebar eats vibrations for breakfast, isolating you from the hum of the road. Flex where you need it the most, in the hoods and the drops. Utilising the same tough and flexible material we us in the springs on our forks the Smoothie is lightweight, yet strong as an ox. The shape takes full advantage of the flared drops. Since flared drops are easy to access, we made the ramps longer (thus top corners sharper) for an extra palm position further behind the hoods. Giving you an additional relaxed position for longer rides.
Lauf JAF
We’re known for our leaf spring suspension forks but for this bike we chose to put on Just A Fork (JAF). It’s normally light at 395g with triple cage-mounts each side.
Long 4 Speed - Geometry
The long toptube paired with a short-ish stem, low headtube and a slack head angle give you a low and aerodynamic position with great stability at high speeds and in rough terrain. Making you Long 4 Speed.
45mm of Rubber
The Anywhere is delivered on high volume semi-slick tires perfect for hammering pavement to gravel. But make no mistake, the Anywhere takes up to 45mm 700c tires - big and chunky for rougher gravel roads with plenty of room for the elements. Add studs and you’re still good to go!
Beer or Gear?
The Beer Or Gear front derailleur design opens up endless possibilities. We know most Anywhere riders are going to want the robustness and simplicity of 1x drivetrains. Naturally they'll get a bottle opener where a front derailleur would otherwise be. But don't worry, you can still put on a 2x system as long as it's wireless.
In-N-Out Cabling
With In-N-Out Cabling, the rear derailleur cable and rear disc brake hose have entry points at the headtube, then they miraculously pop out at the optimal locations. No hassle and no annoying rattling inside the frame. Some might call it voodoo but we call it Lauf’ing Out Loud engineering.
3x Bottle Mounts
Three bottle mounts come in handy for a long day in the saddle. On top of that the top tube has mounts for a bento box for easy access to food or other smaller items on the long haul.
Threaded Bottom Bracket
For the tried and tested ease of maintenance and creak free riding. It costs more to produce, but it's worth it!
MTB Tested
The Lauf Anywhere gravel frame has undergone serious testing as it meets the ISO standard for mountain bike frames. This makes for a sturdy frame that handles all the fun at only 1.070g - Medium frame, including front and rear derailleur hangers.
Tapered Headtube
The headtube is tapered (1.125” to 1.5”) for improved strength and control.
Single Piece Front Triangle
By using advanced molding technologies, bonded junctions are avoided and internal surfaces are kept smooth. Resulting in longer continuous carbon fibers and less unwanted material overlap. Thus a stronger and more efficient frame.
Support
Setting up and taking care of your Lauf Anywhere is essential. If in doubt, please contact us at support@laufcycling.com
